Details

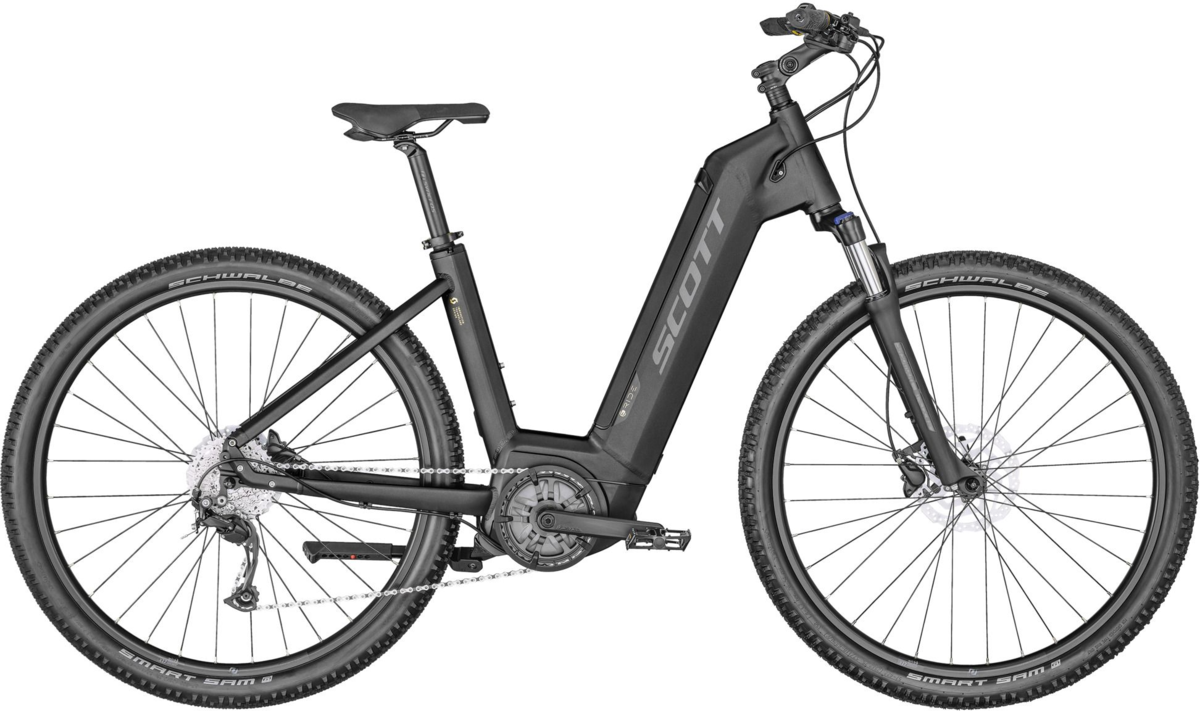

Meet the Sub Cross eRIDE 30, the easy way to explore gravel roads or smooth trails. The bike is equipped with the powerful Bosch Active drive unit, intelligently integrated into the frame for a slick and smooth design. An adjustable stem and ergonomic saddle result in optimal comfort.
*Please note that bike specifications are subject to change without prior notice.
KEY FEATURES
- Unisex Alloy Frame
- Bosch Active, 400Wh battery
- Shimano 9 Speed
- Shimano Disc Brakes
- Front suspension: Suntour 63mm
Frame Size | X-Small | Small / 700 | Medium / 900 | Large / 900 |
---|---|---|---|---|
A — Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
B — Head Tube Length (mm) | 170 | 170 | 170 | 170 |
C — Top Tube Horizontal (mm) | 595 | 600 | 605 | 610 |
D — Standover Height (mm) | 499.3 | 499.3 | 499.3 | 499.3 |
E — Bottom Bracket Offset (mm) | -70 | -70 | -70 | -70 |
F — Bottom Bracket Height (mm) | 304 | 304 | 304 | 304 |
G — Wheelbase (mm) | 1151.2 | 1156.2 | 1161.2 | 1166.2 |
H — BB Center to Toptube Center (mm) | ||||
I — BB Center to Top of Seattube (mm) | 440 | 480 | 520 | 560 |
J — Seat Angle | 72.5° | 72.5° | 72.5° | 72.5° |
K — Chainstay (mm) | 505 | 505 | 505 | 505 |
L — Reach (mm) | 392.1 | 397.1 | 402.1 | 407.1 |
M — Stack (mm) | 643.6 | 643.6 | 643.6 | 643.6 |
Specs
Frame | Sub eRIDE 6061 Alloy |
---|---|
Fork | SUNTOUR NVX 30 NLO DS QR 700C TAPERED / 63mm Travel |
Rims | Cross X17 Disc 32h |
Hubs |
Front: Shimano HBMT200B 32H QR CL Rear: Shimano FHRM35BZBL5 32H QR CL |
Spokes | BLACK spokes * F: 14G / R: 13G |
Tires | Schwalbe Smart Sam 29x2.25 |
Crankset | Miranda 172,5mm |
Chainrings | 38T Chainflow / Chainprotector |
Shifters | Shimano Alivio SL-M3100 9 Speed |
Rear Derailleur | Shimano Alivio RD M3100SGS 9 Speed |
Cassette/Freewheel | Shimano CS HG400 11-36 |
Chain | KMC E9s NPBK |
Brakes | Shimano BR-M200 Disc |
Rotors | 180/F SM-RT10 and 160/R SM-RT10 |
Handlebars | Syncros UC3.0 680mm / Rise 12mm / backsweep 15° |
Stem | Syncros UC 3.0 adjustable |
Headset | GW semi integrated |
Seatpost | Syncros 3.0 / 31.6mm / 350mm |
Saddle | Syncros Capilano |
Pedals | VPE-506 |
Accessories & Extras | ABUS Battery Lock, Ursus Mooi Central kickstand |
Motor | Bosch Active BES2 EU: 25kmh / US: 20mph |
Battery | 400Wh PowerTube Battery |
Controller/Display | Purion Display |
Charger | 2A Charger |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black / X-Small | 192820753232 | 290647004 | 210000015186 |
Black / Small | 192820753249 | 290647006 | 210000015188 |
Black / Medium | 192820753256 | 290647008 | 210000015189 |
Black / Large | 192820753263 | 290647010 | 210000015190 |
