Details

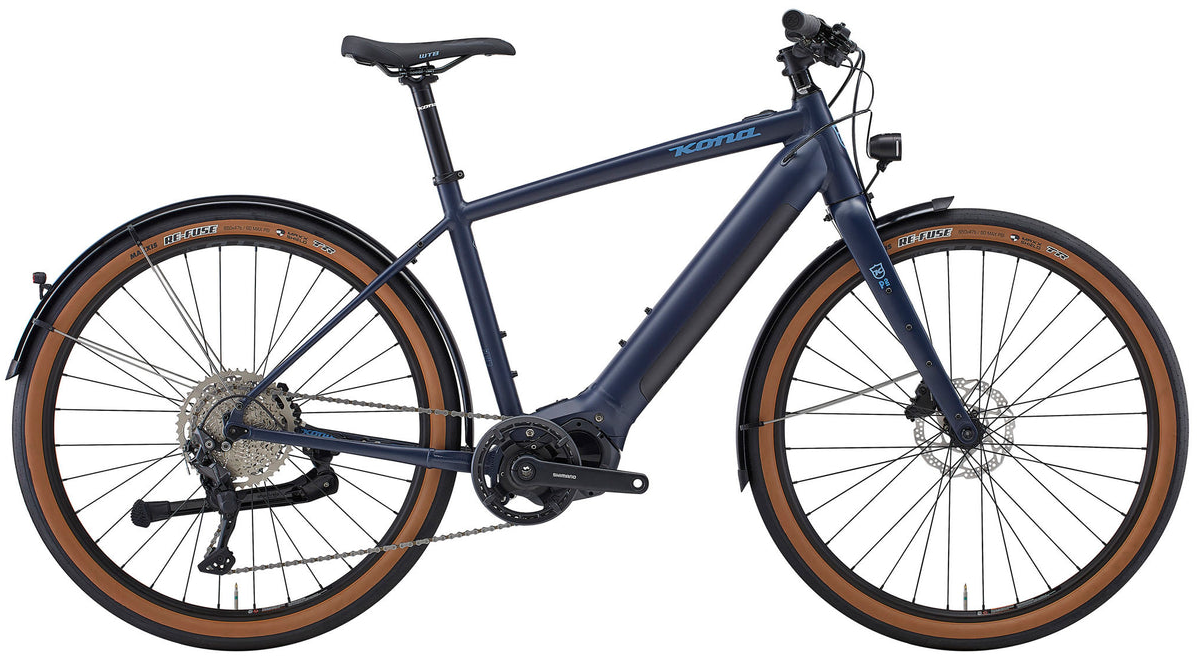

Commuters have been flocking to the Dew-E DL for its stylish design and because it’s a blast to ride. An aluminum frame features a Kona Rove Verso Full Carbon Flat Mount Disc fork. A 10-speed drivetrain works in perfect harmony with the low-profile Shimano motor and integrated battery. Sturdy aluminum fenders and lights keep you dry and visible throughout your ride. Powerful hydraulic disc brakes and 160mm rotors stop on a dime, even in wet conditions and puncture-resistant 650x47c tires keep the road rolling by smoothly whether you’re cruising on pavement, or a dirt path. This is the electric commuter you’ve been searching for!

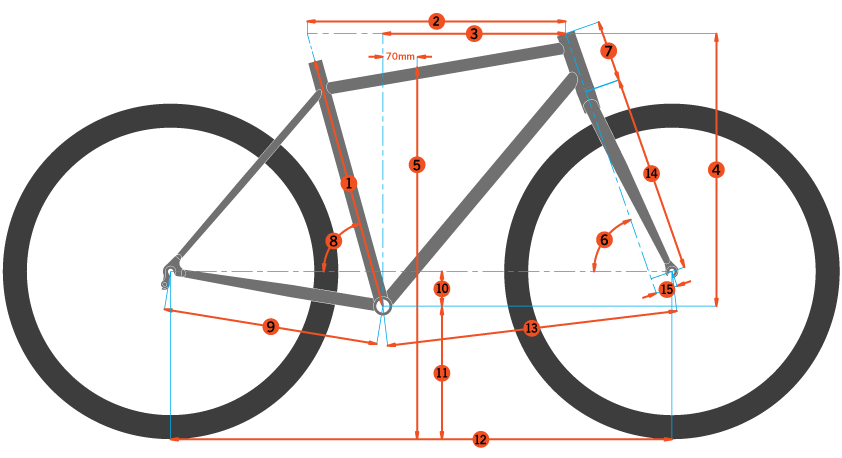

SIZE | Small | Medium | Large | X-Large | |
---|---|---|---|---|---|
1 | ST LENGTH | 420 | 470 | 520 | 580 |
2 | TT LENGTH | 551 | 596 | 635 | 678 |
3 | REACH | 404 | 430 | 446 | 471 |
4 | STACK | 548 | 579 | 617 | 636 |
5 | STANDOVER | 700 | 741 | 786 | 830 |
6 | HT ANGLE | 70 | 70 | 70 | 70 |
7 | HT LENGTH | 135 | 168 | 208 | 228 |
8 | ST ANGLE | 75 | 74 | 73 | 72 |
9 | CS LENGTH | 450 | 450 | 450 | 450 |
10 | BB DROP | 60 | 60 | 60 | 60 |
11 | BB HEIGHT | 282 | 282 | 282 | 282 |
12 | WHEELBASE | 1081 | 1118 | 1148 | 1180 |
13 | FRONT CENTER | 638 | 675 | 705 | 736 |
14 | FORK LENGTH | 400 | 400 | 400 | 400 |
15 | FORK OFFSET | 50 | 50 | 50 | 50 |
Specs
Frame | Kona 6061 Aluminum Butted |
---|---|
Fork | Kona Rove Verso Full Carbon Flat Mount Disc |
Rims | WTB ST i23 TCS 2.0 |
Hubs |
Front: Shimano Tiagra 100x12mm Rear: Shimano Tiagra 142x12mm |
Spokes | Stainless 14g |
Tires | WTB Horizon TCS w/ Puncture Protection 650x47c |
Crankset | Shimano E6100 |
Chainrings | 38T |
Shifters | Shimano Deore |
Rear Derailleur | Shimano Deore |
Cassette/Freewheel | Shimano Deore 11-46t 10spd |
Chain | Shimano HG54 |
Brakes | Hydraulic disc brakes |
Rotors | Shimano RT54 160mm |
Brake Levers | Shimano MT201 Hydraulic |
Handlebars | Kona Aluminum Riser |
Tape/Grips | Kona Key Grip |
Stem | Kona Control |
Headset | FSA No.57BP |
Seatpost | Kona Commuter 31.6mm |
Saddle | WTB Volt |
Pedals | Sold separately |
Accessories & Extras | Fenders, Busch & Müller Front & Rear Light, Kickstand |
Motor | Shimano E6100 20MPH |
Battery | Shimano 504Wh |
Controller/Display | Shimano SC-E7000 Display |
Charger | Shimano STEPS 2A |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Matte Midnight / Large | 0841073151578 | B36EDWD05 | 210000015110 |
